TORAIN C1

29er 2x10/11sp

BIKE PRICE
from 40 832 Kč
with groupset
RockShox Recon SRAM X5 2x10sp Fulcrum Ritchey Comp

Color

Frame colour Logo colour Frame colour Big stripe colour Small wave colour Logo colour Frame colour Colour - front part Colour - stripes Logo colour front Logo colour rear Fork color Colour of saddle Base Frame Loading
  • Design

  • Mono Mono

    Frame colour

    • Arctic White
    • Attractive Green
    • Eclipse Black
    • Ultramarine Blue
    • Fire Red
    • Light Blue
    • Classic Yellow
    • Melon Yellow
    • Orange
    • Light Pink
    • 1504 Light Silver
    • 1505 Classic Silver
    • 1506 Titan Grey
    • 1507 Anthrazit Grey

    Logo colour

    • CA171 White
    • CA172 Black
    • CA174 Titan Grey
  • Across Across

    Frame colour

    • Arctic White
    • Attractive Green
    • Eclipse Black
    • Ultramarine Blue
    • Fire Red
    • Light Blue
    • Classic Yellow
    • Melon Yellow
    • Orange
    • Light Pink
    • 1505 Classic Silver

    Big stripe colour

    • Arctic White
    • Attractive Green
    • Eclipse Black
    • Ultramarine Blue
    • Fire Red
    • Light Blue
    • Classic Yellow
    • Melon Yellow
    • Orange
    • Light Pink
    • 1505 Classic Silver

    Small wave colour

    • White
    • Black
    • Green

    Logo colour

    • CA171 White
    • CA172 Black
  • Trendy Trendy

    Frame colour

    • Arctic White
    • Attractive Green
    • Eclipse Black
    • Ultramarine Blue
    • Fire Red
    • Light Blue
    • Classic Yellow
    • Melon Yellow
    • Orange
    • Light Pink
    • 1505 Classic Silver

    Colour - front part

    • Arctic White
    • Attractive Green
    • Eclipse Black
    • Ultramarine Blue
    • Fire Red
    • Light Blue
    • Classic Yellow
    • Melon Yellow
    • Orange
    • Light Pink
    • 1505 Classic Silver

    Colour - stripes

    • White
    • Black

    Logo colour front

    • CA171 White
    • CA172 Black

    Logo colour rear

    • CA171 White
    • CA172 Black
  • Fork color

    • Black
  • Colour of saddle

    • White
    • Black
  • Logo on frame

    Choose your logo

Extra charge paintjob:
Inclusive

Extra charge logo: 0 Kč

  • Change background

    • Dark
    • Light
Share on FB Download

Favouriter designs:

Frame size

Basic Rider parameters

The smallest possible body height is 148cm The greatest possible body height is 210cm
The smallest possible weight is 40 kg The smallest possible weight is 40 kg The greatest possible weight is 150 kg The greatest possible weight is 150 kg

Rider profile

Describe yourself as a rider. This helps us with recommendations on appropriate components and setting a sitting position.

Ambition

Health: You do not cycle for sport, but you love being out in nature and discover new things.

Hobby: Cycling means leisure to you. You do cycle to enjoy nature and keep yourself fit.

Sport: You do cycling for sport. When you are on the bike, you want to train yourself and compete with your friends.

Race: You are training seriously on your bike and sometimes compete at marathons and other races.

Professional: You want to win races at a high level, so being fast is the most important to you.

Experience

You are just starting to discover cycling for yourself.

You are just starting to discover cycling for yourself, but you do other sports on a regular basis.

You started cycling one or two years ago, and last year you did about 2000 km on your bike.

You spend lots of your time one you bike, which adds up to around 5000 km a year.

You have been cycling seriously for a long time and do 10 000 or more km a year.

Velikost rámu je nestandardní, musíme Vám vyrobit rám na míru. Budeme Vás kontaktovat

OK
VR
cm
VR
inch
VP
cm
A1
mm
A2
mm
B2
mm
C1
mm
C2
mm
D
mm
F
mm
G
mm
H
mm
K
mm
L
mm
O
mm
R
mm
S
mm
α
deg
β
deg
44 17.3 167 - 171 586 569 440 445 450 298 115 667 1108 46 88,5 794 408 621 69,5 74,0
46 18,1 172 - 176 595 576 460 445 450 298 115 676 1117 46 88,5 804 417 621 69,5 74,0
48 18,9 177 - 181 608 586 480 445 450 298 115 683 1124 46 88,5 814 424 621 69,5 73,5
50 19,7 182 - 186 620 597 500 445 450 298 115 689 1131 46 85,0 824 435 623 70,0 73,5
52 20,5 187 - 191 633 610 520 445 450 298 125 703 1144 46 85,0 839 446 633 70,0 73,5
54 21,3 192 - 196 645 622 540 445 450 298 135 715 1157 46 85,0 853 455 642 70,0 73,5
56 22,0 197 - 201 658 634 560 445 450 298 145 723 1164 46 85,0 867 459 651 70,0 73,0
58 22,8 202 - 205 670 646 580 450 455 303 155 731 1178 46 81,5 885 469 658 70,5 73,0
60 23,6 206 - 208 682 659 600 450 455 303 165 743 1190 46 81,5 899 478 668 70,5 73,0
62 24,4 209 - 211 694 673 620 455 459 308 175 756 1209 46 81,5 916 489 672 70,5 73,0
64 25,2 212 - 215 706 686 640 455 459 308 185 763 1215 46 78,1 931 497 684 71,0 73,0
66 26,0 216 - 220 718 700 660 455 459 308 195 775 1228 46 78,1 946 506 693 71,0 73,0



Dimension

Summary

Thank you for your interest in a customised bicycle built by us.

You can now either SAVE AS PDF which you can print out for yourself or you can. START AGAIN if you feel that the configuration needs to be changed. EMAIL US to allow us to look over your configuration and we can advise by calling you direct. ADD TO BASKET will confirm your order with us and we will contact you by telephone to confirm. Payment is made at the time of order. Thank you

Price for complete bike 0 Kč

Weight 1650g

Save as PDF Start again Email Us Add to basket You must have selected the size of the frame and components to continue.

X

Your demand

Complete the following items so we can contact you back.

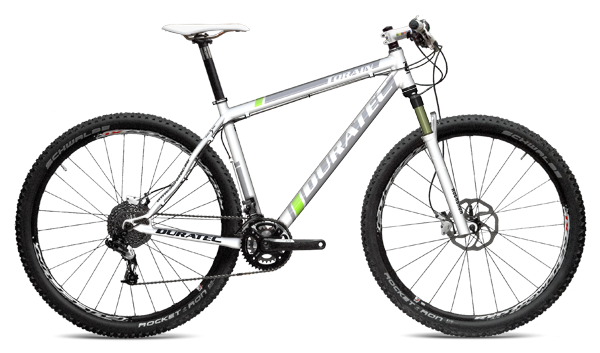

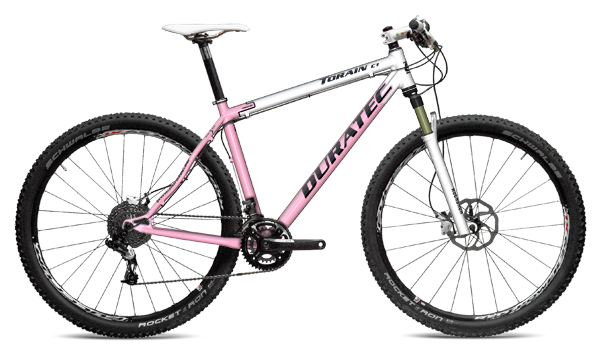

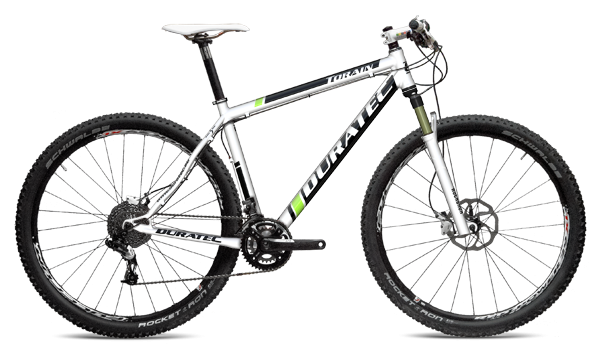

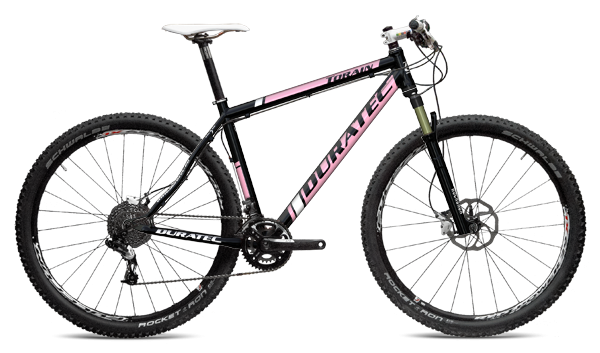

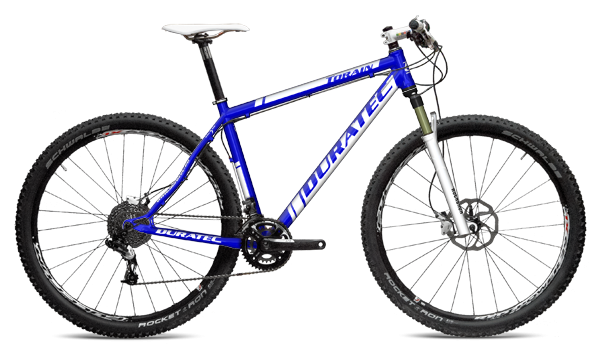

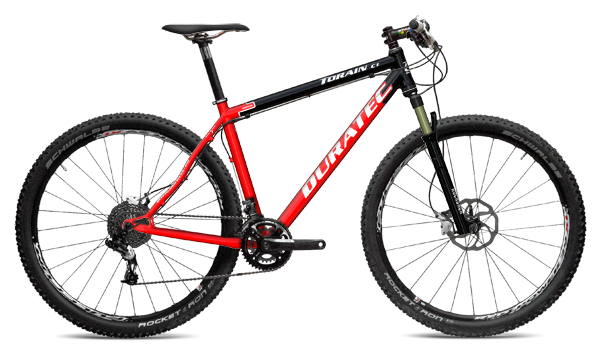

TORAIN C1 29er 2x10/11sp

The Torain C1-29" mountain bike is intended for cyclists who love sport cycling through forests, the countryside or more demanding terrain. It is a variant suitable for everyday journeys and amateur racing. The frame characteristics and construction fulfil the demands of the general MTB community.

Thanks to our own production, we can optimise the frame geometry and riding position in such a way that it corresponds to the physical proportions of a specific cyclist. For many clients this professional service and customised frame production is a core decision when choosing a bike.

The frame of the Torain C1 is made of 7020T6 aluminium alloy, and its design utilises large-diameter tubes which effectively resist the dynamic strain during a race and offer the cyclist faster reaction and good handling due to their rigidity. The rear stays are dimensioned in the direction of the impacts coming from bumps in the terrain, and their shape ensures ride comfort. This is the best-selling 29" bike, which by virtue of its quality construction, hand ground welds, technical maturity and design fulfils high demands and offers great value for money.

Standard fittings
fitting bottle cages to the seat and down tube, replaceable hanger for derailleur, seat clamp diameter is 34.9 mm, rear disc brake Int'l Standard, braze-on for front derailleur, 1 1/8" - 1 1/2” FSA ORBIT IS2 headset

Extra version
preparation for "V" brakes, preparation for carrier installation, brake disc diameter 203 mm, rear dropouts for Syntace X12 thru axle

Connecting dimensions
geometry of frame adapted to suspension forks 29" with travel of 100mm, wheel diameter 29", max. brake disc diameter 180 mm, fork steerer 1 1/8" - 1 1/2", top pull front derailleur, braze-on-type front derailleur, BSA bottom bracket (width 68 mm), diameter of seat post 31,6 mm, max tyre width 2.25"


Torain C1 benefits

Frame geometry
download the table: male geometry | female geometry


Front DerraileurFront Derraileur

The Torain C1 frame is only suitable for a front derailleur on a brazed-on. The advantage of the attachment is a shaped join, and during use there cannot occur twisting of the front derailleur, as occurs in the case of fixing to a clamp.

Duratec frames are hand welded, They do not have a conventional bead shaped by a welding robot, because the weld is performed by hand in several steps. You can find more information about welds and grinding on the technology page

As a manufacturer who follows the demands of the market, we can state that 2/3 of mountain bikes made have twenty-nine inch wheels! Why twenty-nine inches? Easier overcoming of obstacles (reduced front angle of approach thanks to the larger wheel diameter), larger contact surface between the ground and the tyre (increased adhesion on bends), lower centre of gravity (the bike is more stable, the feeling of going over the handlebars is reduced), greater momentum of wheels (larger diameter = greater momentum).

For people taller than 175 cm, the twenty-nine is the only right choice!

29" wheels29" wheels
CNC dropoutsCNC dropouts

CNC rear frame dropouts with stainless steel contact surfaces. Stainless steel inserts prevent the quick-release being forced into the frame. They are replaceable, fixed in place with 3 screws. The rear wheel can be tightened to the required torque without damage to the frame.

At the request of the customer we can also make this frame with attachment of rear wheel by fixed axle and Post Mount attachment of rear brake.
